Our innovative and advanced electromagnetic prospecting technology is presented in the "LWUD-15" (Long Wave Universal Detector) system, set of highly sophisticated electronic devices developed by a prominent Serbian inventor and scientist Mr. Zvonimir Dj. Jankovic, Academician of SAIN (Serbian Academy of Inventors and Scientists), Head of our technical team in this program.
Basic electronic devices are programmed to operate with ultra-short and short waves in the 10 Hz to 20 kHz frequency range. We are able to offer this system for prospecting (screening-detecting) of metal and non-metal ores, minerals (diamonds, emeralds, opals, sapphires, rubies), oil, gas and oil shale, coal, water, pollutants in the ground, as well as in quick and efficient detection of alive and dead people buried after earthquakes and other elemental disasters, archeological sites, explosives and explosive devices, underground tunnels, drugs, smuggled money, etc.).
We wish to especially highlight that this system can detect all elements of Mendeleyev's system of natural elements with the groups and subgroups up to 5,000 m, i.e. to 8,000 m depth (with certain more powerful amplifiers). This system has been in operational use for more than ten years. Now, the 6th generations of this system are in use. We have many years of practical experience in the country and abroad (Russia, Kazakhstan, Pakistan, Iran, Bosnia, Croatia, Montenegro, Zambia, Sudan, etc).
As an example, here are some of the larger jobs we've done in 2018: in February, our expert team performed an exploratory examination of new deposits of barite in Bosnia, in April and May, we performed an exploratory examination of new deposits of copper ores in Zambia, for the needs of an American businessman from the State of Virginia (USA) and an Italian businessman from South Africa, then in August in Republic of Sudan we performed an exploratory examination of new deposits of gold on an area of 133 km², where we finished the first phase – horizontal prospecting. We detected at many points strong and somewhat weaker signals of the presence of gold in the ground.

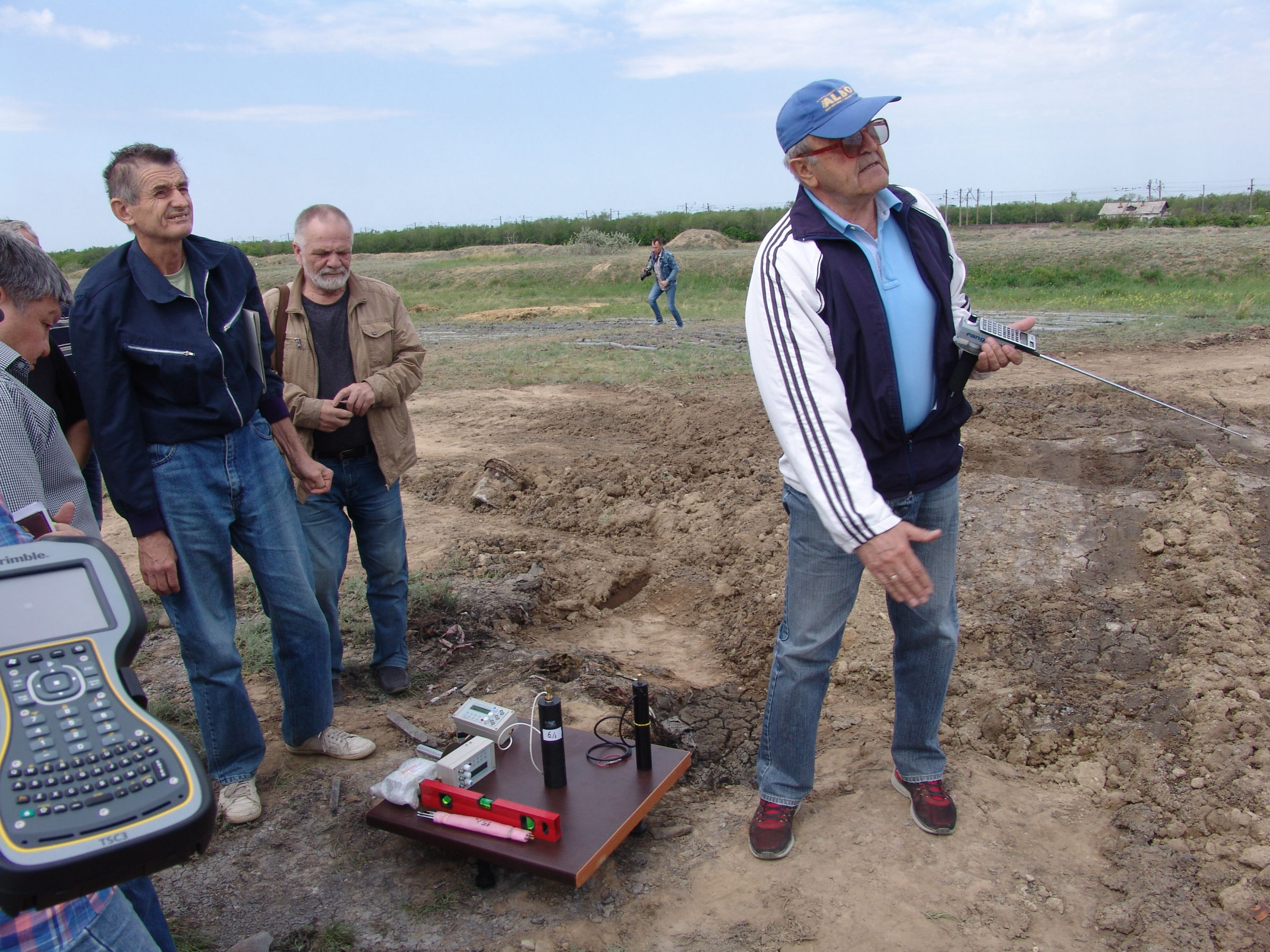

Mr. Jankovic, Head of our Technical Team
Successfully tested efficiency of the performances of the "LWUD-15"
system in Kazakhstan, 2017.
In our process of work We first perform horizontal prospecting on a defined area, where the results obtained in the 2D model and, immediately thereafter, we perform the vertical prospecting to a depth of 5,000 m, i.e. to a depth of 8,000 m (by using additional a more powerful amplifier) and get the results in the 3D model. Just our technology can determine the depth at which the oil or gas are, then layer thickness, whether they are mixed or separated, etc. Our 3D results of measurement give all the necessary parameters for the optimal planning of exploratory examination and exploitation wells where the results are obtained in the 2D model.
This method takes into account all major periodic parameters such as electronegativity, ionization energy, electron affinity, atomic radius, ionic radius, metallic character, and chemical reactivity. On this basis, the frequencies of individual elements or compounds are determined. We have determined that all the elements of periodic table have different resonant frequencies, from Hydrogen as the element with the smallest atomic mass and highest frequency to Nobelium as the element with the biggest atomic mass and lowest frequency. Our "LWUD-15" system of electromagnetic prospecting works on the principle of ultra-short and short frequencies (10 Hz - 20 kHz) and these frequencies are loaded into our electronic devices.
Electromagnetic resonance (EM) method is emerging as the most competitive technique for geophysical exploration and field development. Distinct from alternative technologies, the “LWUD-15” is not reliant on interpretation or probability. The system measures the EM resonance of the rock or fluid and how it response to waves of specific radio frequency generated as a surface source. The method is direct exploration indicator and could be perfectly analogous to well logging.
Also, we have “ALDIJAN” system which is intended for exploratory examination of new deposits of diamonds, precious and semi-precious stones (rubies, sapphires, emeralds, spinel group, tourmalines, opals, aquamarines). This variant is derived from our basic system of electromagnetic prospecting "LWUD-15".The principle of “ALDIJAN“ work is based on emissions of electromagnetic waves at a frequency of diamonds across the emitter - tracer, forming a beam of 4 mm to 20 mm, and then using a magnetic sensor in which the frequency is also adjusted, detects an interference field where the diamonds are.
The technique provides exploration companies and operators with the capability to pinpoint the location of hydrocarbons or ores, minerals, etc. before costly drilling programs begin. However, the most important value is that “LWUD-15” survey provides immediate results of the subsurface composition. In addition, this technique departs markedly from traditional seismic method because of the high crew mobility and their miniature size. Above all the method is very economical.
For better understanding: our expert team performs exploratory examination of new deposits of ores, minerals, oil, etc. in two phases (horizontal and vertical prospecting - screening, detecting) without drilling holes in the ground on the terrains and thus our "LWUD-15" system is faster, more efficient and incomparably less expensive than it is done by some other geophysical methods. Our expert team also includes an expert in morphological and structural analysis.
“LWUD-15” system is able to detect any ores (gold, silver, platinum, palladium, etc,, for example) in any climatic and terrain conditions and in any form. What we wish to especially emphasize and what we are especially proud of is that the system can very precisely determine the weight of gold and other ores in mg or grams per m³ of material.
Applying all these systems and their method, for oil and gas exploration (offshore and land), it is possible to do following:
• Detection and identification of oil and gas reservoirs, as well as potentiality of
survey area;
• Mapping oil reservoir, and sounding as a function of depth;
• Lithological identification of the ground;
• Detection of chemical elements and compounds specific to certain reservoir.
Using all these systems and method in the field of hydrogeological explorations, we’re able to perform the following services:
• Defining position of aquifer:
- The main groundwater circulation location;
- Determining the aquifer depth;
- Determination of their thickness;
- Lithological identification of the ground
• Identifying the presence of pollutants in the underground (Fe, Mn, NH3, total nitrates and nitrites, arsenic, phenols, detergents, oil, etc…)
• Our engineers have the experience and resources necessary to manage
hydro-geological projects from conception through to completion and to provide hydro-geological analysis and design services for all ground engineering problems.
List of our services:
• Mapping of ore body and depth analysis
• The roof and underlying formation of ore body resolution
• Water bearing formations within ore deposit
